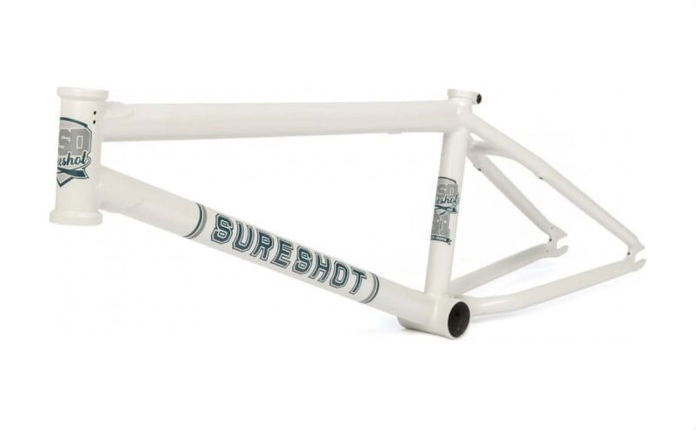

BSD Sureshot Frame

- Wheel size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube cast sets, integrated headset, invest cast seatstay bridge.
- Geometry:
Top tube length (TT): 21.0", 21.3" or 21.7"
Rear tube length (CS): 13.4" (34.04cm) - 13.9" (35.31cm)
Headtube angle (HA): 74.75° (34.04cm)
Seat tube angle (SA): 71°
Bottom bracket height: 11.5" (29.21cm)
Frame height (SO): 9" (22.86cm)
- Seat clamp: integrated investment cast (investment cast)
- seat post diameter: 25.4mm
- Bottom bracket: Mid BB
- Dropouts: Investment Cast (investment casting), 7mm thick, 14mm axle mount
- Chain tensioner: integrated
- Brake type: U-Brake
- Brake socket: with (screwable, M6)
- Brake socket included: No
- Rotor compatible: No
- Features: wide rear for thick 2.4" tires
- Model year: 2022
